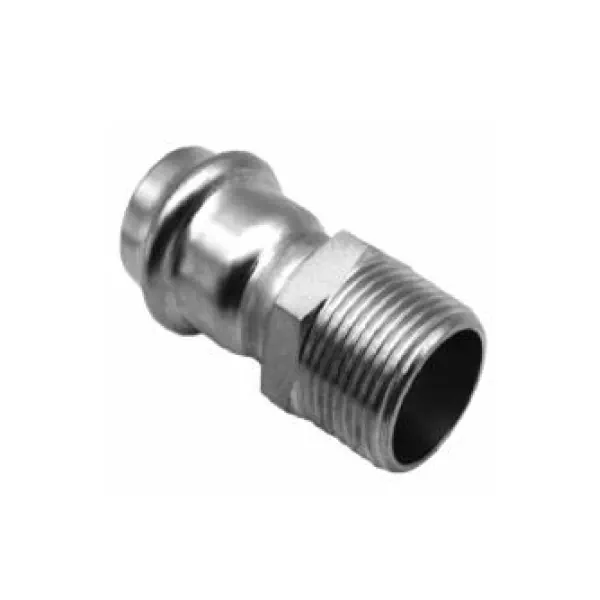

A transition element connecting a press line to a male threaded (R) equipment. One end is press-fit, the other is a male thread.
All our products are manufactured from AISI 304 and AISI 316L stainless steel. The products feature specialized O-Ring grooves that guarantee leak-proof performance during pressing and LBP (Leak Before Press) technology to prevent incorrect installation.
| PART NO | SIZE (mm) |
|---|---|
| CNE015S-1/2-4 | 15xR1/2 |
| CNE018S-1/2-4 | 18xR1/2 |
| CNE018S-3/4-4 | 18xR3/4 |
| CNE022S-1/2-4 | 22xR1/2 |
| CNE022S-3/4-4 | 22xR3/4 |
| CNE028S-3/4-4 | 28xR3/4 |
| CNE028S-1-4 | 28xR1 |
| CNE035S-1-4 | 35xR1 |
| CNE035S-1-1/4-4 | 35xR1-1/4 |
| CNE035S-1-1/2-4 | 35xR1-1/2 |
| CNE042S-1-1/4-4 | 42xR1-1/4 |
| CNE042S-1-1/2-4 | 42xR1-1/2 |
| CNE054S-1-1/2-4 | 54xR1-1/2 |
| CNE054S-2-4 | 54xR2 |
| CNE076S-2-1/2-4 | 76.1xR2-1/2 |
| CNE089S-3-4 | 88.9xR3 |
| PART NO | SIZE (mm) |
|---|---|
| CNE015S-1/2-6 | 15xR1/2 |
| CNE018S-1/2-6 | 18xR1/2 |
| CNE018S-3/4-6 | 18xR3/4 |
| CNE022S-1/2-6 | 22xR1/2 |
| CNE022S-3/4-6 | 22xR3/4 |
| CNE028S-3/4-6 | 28xR3/4 |
| CNE028S-1-6 | 28xR1 |
| CNE035S-1-6 | 35xR1 |
| CNE035S-1-1/4-6 | 35xR1-1/4 |
| CNE035S-1-1/2-6 | 35xR1-1/2 |
| CNE042S-1-1/4-6 | 42xR1-1/4 |
| CNE042S-1-1/2-6 | 42xR1-1/2 |
| CNE054S-1-1/2-6 | 54xR1-1/2 |
| CNE054S-2-6 | 54xR2 |
| CNE076S-2-1/2-6 | 76.1xR2-1/2 |
| CNE089S-3-6 | 88.9xR3 |
